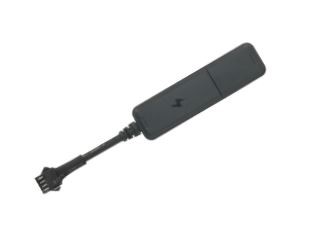

Gps Gsm Car Alarm And Gps Tracking Anti-theft Device For Your Vehicle

gps gsm car alarm and gps tracking anti-theft device for your vehicle

Product decription :

Positioning Monitoring

Timed Monitoring

Blind Area Compensation

Curve Compensation

Base Station Location

Main Voltage Detection

ACC Detection

【Basic Functions - Alarm Function】

Low Pressure Alarm (Only for 12V/24V Battery)

Speeding alarm, low speed alarm

abnormal alarm of positioning module

Interference detection alarm

main power off alarm

1.1 Smart Sleep

The host's built-in high-sensitivity G-sensor accelerometer can monitor whether the vehicle is moving in real time. When no motion is detected for a long time, the host automatically enters the power-saving state, turns off the GPS/BD module, and GSM enters the heartbeat return state. In this state, the power consumption of the device is extremely low, which can greatly reduce the battery of the vehicle. The loss.

1.2 Smart Self Test

The on-board terminal can perform self-diagnosis. In the event of a failure, it will send a fault notification to the center, such as GPS, GSM, etc., and can automatically take relevant measures. The monitoring center can also query the current model, version, configuration, operation status, and device functions of the terminal.

1.3 Static drift suppression

The host's built-in high-sensitivity G-sensor acceleration sensor and a complete set of positioning data filtering algorithm can filter out most of the static drift data to ensure the accuracy of GPS data.

1.4 Smart Remote Control

Through the central system to remotely control the vehicle to lock the car, unlock, unlock the terminal abnormal state, etc. After the vehicle terminal receives the instruction, it will execute the corresponding operation on the vehicle circuit or the oil circuit, and send back a power off/oil confirmation message to the center, and upload the current The state of the vehicle. Once the vehicle accepts the electric/oil circuit disconnection command, the on-board terminal will memorize this state until the center issues a recovery command.

1.5 Mileage Statistics

The vehicle mileage data is transmitted back to the monitoring center along with the vehicle positioning data; the initial mileage can be set when the vehicle is installed.

1.6 Remote Settings

Remotely set various terminal parameters through the central system, including IP, center number, and various monitoring parameters.

1.7 Remote Upgrade

As long as the GPRS terminal is available, the terminal can use remote wireless to complete the terminal software upgrade.

1.8 Dual IP or Dual Domain Names

The terminal supports dual IP connections between the primary server and the standby server. By default, the primary server is connected. If the primary server has a problem, it automatically switches to the standby server. The primary server and backup server can be set in two ways: IP or domain name.

1.9 Bibliographic Agreement Version

The terminal factory can select the JTT808 part label protocol, which is applicable to all platforms supporting the labeling protocol.
