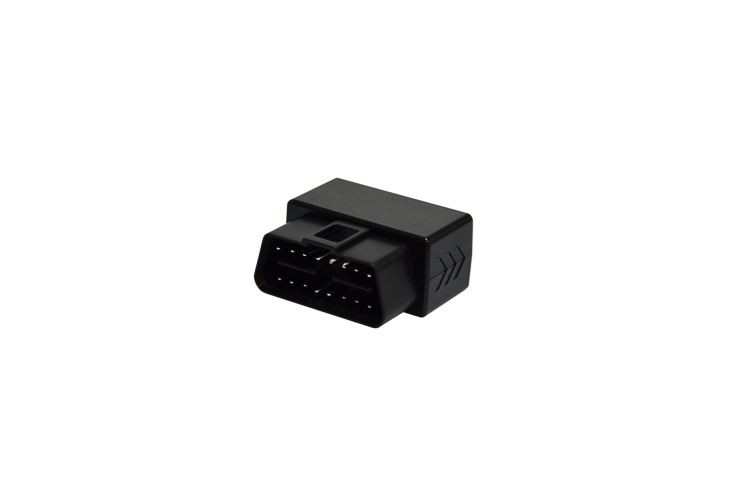

BY-A2 is a mini, practical and easy-to-use vehicle GPS tracker specially designed for vehicle tracking with fine workmanship. It combines GPS+LBS communication technology. With AGPS technology, this device can easily achieve extreme fast positioning.
Send InquiryNo | Name | Quantity | Unit |
1 | BY-A2 host | 1 | Pcs |
2 | User manual; Warranty card; Certificate of approval | 1 | Pcs |
3 | Power cable | 1 | pcs |

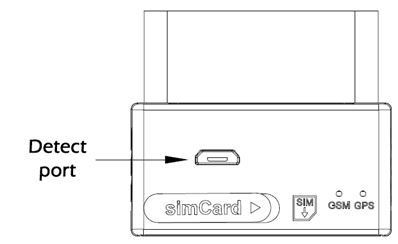

GSM （Red） | Flash fast：GSM in the Initializing Flash slowly：GSM signals is normal Light long：GPRS online Not light：Not yet received the GSM signal/not insert SIM card/GSM dormancy |
GPS （Yellow） | Flash fast：Searching for GPS signals Long bright：GPS has been positioning Not light：GPS dormancy/not working |
Item | Specifications | Remark | |
Working Voltage | |||
2 | Working Current | 25mA@12V (static current10mA) | Not charging |
3 | Communication network | GPRS | |
4 | Size | L45mm*W39mm*H22mm | |
5 | Location Accuracy | <10 meter | |
6 | Communication | GPS | |
7 | Working Temperature | -25℃+75℃ | |
8 | Storage Temperature | -40℃+85℃ | |
Communication Network | GPRS GSM: 850/900/1800/1900 MHz | ||
10 | Net Weight | ||
11 | Communication ways | TCP | |
12 | Battery | 0.5 hours | 50mA/h |
Functions | Function details | Description |
Real time tracking | According to the set interval time, the default motion mode is reported to a position data in 30s, and the static mode 300s reports a position data. | |
Alarm | Power down alarm | When device checking the voltage is lower than 5V it will have power down alarm |
Over speed alarm | When speed is over than the set speed, device will send message to user. | |
Other functions | Blind area uploading data | Storage for almost 600pcs and it will upload the date when the signal is regular |
AGPS function | The terminal increases the AGPS support location function and enhances the positioning effect | |
Inflexion upload | When the angle that vehicle turned is more than a normal scale it will send a message to optimize the playback | |
Remote upgrading | With a software remote upgrading | |
Low power consumption | Static mode | The 3D triaxial acceleration sensor can detect the vibration state of the vehicle in real time, and the upper power is the motion mode. When the host is stationary for 5 minutes, it is still mode, and the GPS module is turned off, and the vibration is entered into the motion mode. |

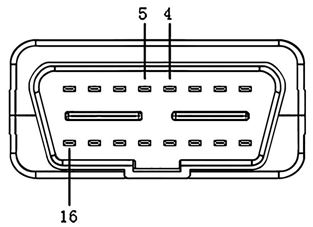

Device wiring diagram:
Pin | Connected to |
4 | GND |
5 | GND |
16 | Power |
Please check whether the equipment is in good appearance & whether accessories are completed.
(2) Set In SIM Card
Please press out the SIM card slot and put SIM card in. Please not put SIM card in or out when the equipment is connecting power. And please make sure the SIM card have data service.
(3) Setup Position
A. Waterproof: Please set the equipment in dry surroundings; keep it away from air-conditioner vents to prevent condensation water inside of the main unit.
B. Anti-Vibrate： tracker cannot installed in where is long term vibrated
C. Anti-interference: tracker should stay away from car audio or intercom devices, to prevent conducted and radiated interference.
Exactly format:
<SPBSJ*P:BSJGPS*T:120.025.232.237,7788*A:CMNET*N:13288888888*C:0030*O:300>
Note: Red fonts, according to actual changes.
SPBSJ | Header |
*P:BSJGPS | Password (default password is: BSJGPS) |
*T:120.025.232.237,7788 | TCP IP and Port |
*A:CMNET | CMNET is APN |
*N:13288888888 | Device’s serial number |
*C:0030 | ACC on time interval (seconds) |
*O:300 | ACC off time interval (seconds) |
Question | Reason | Solution |
Online tracking offline | SIM Card not enough credit | Charge credit |
SIM Card contact problem | Reinstall SIM card | |
Online tracking parameter setting error | Reset Parameters with correct format according to user manual | |
Vehicle in underground car parks or tunnels, signal weak. | Go to good signal area | |
Cannot locate | Vehicle in underground car parks or tunnels | Leave that area |
GPS Antenna Side is not up to sky | Make the GPS antenna side up to sky |
1. Stay away from water
2. Please keep the car battery fully charged
3. Device working current is 9-36V, recommended 12V and 24V. Tracker will damage if the current is over this range.
4. Working temperature is -25to 75centigrade, Please cut off power if the temperature is over this range.
5. When vehicle is in underground parks, tunnels or garage, maybe GPS signal will not very good. Communication network blind area will be caused and cannot monitor vehicle. When the car is out of that area, it will working good automatically.
6. Please not repair by yourself when the device not working properly.
1. During the one-year warranty, please feel free to contact us if there is any problem or damage not caused by human factors.
2. Not maintenance:
(1) Client dismantled privately
(2) Force majeure (floods, accidents, etc.)
3. More than one year damage or faulty maintenance will need to pay for raw material.
4. Free to provide customers with the purchase, use, installation and other consultation and technical services.
