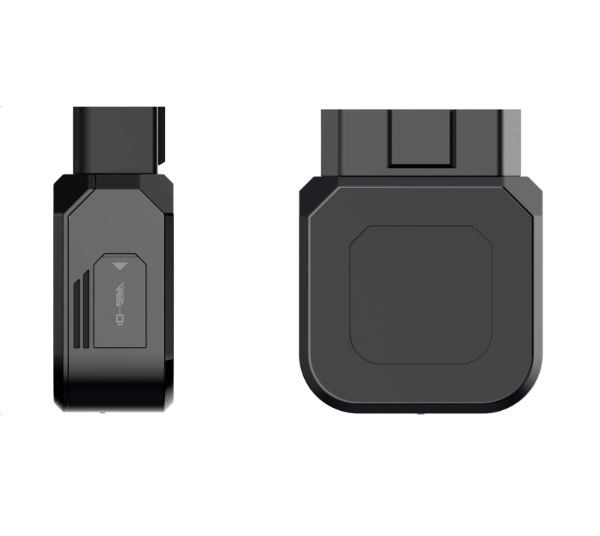

Operating Voltage

9V-36V DC

Average operating   current

180mA@12V

Sleeping current

<10mA@12V

Operating temperature

-30℃～＋70℃

storage temperature

-40℃～＋80℃

positioning accuracy

<10m

GPS frequency range

1575.42MHZ

4G frequency range

FDD-LTE-TDD-LTE:   B1/B3/B8/B38/B39/B40/B41

UMTS: B1/B8/1900/2000

GSM: 900/1800MHz

OBD type

support OBDII/EOBD

SIM card

External (Micro card）

4G antenna

Internal

GPS antenna

Internal

WIFI antenna

Internal

USB

1. Serial port: 3.3V   TTL level

2. Output voltage: 0V   output / 5V output / 12V output (three choices one)

GPS receiver

Cold start time   (average)

Receiver type

L1 frequency, C/A Code   50channel

Hot start time   (average)

Receiving sensitivity

<-161dB,Typical   value

Positioning accuracy

Speed accuracy

<0.1 m/s

Chip model

EC25-E

EC25-AU

Network standard

4G/3G/2G

4G/3G/2G

Area

China / India /   Thailand

Europe/Middle   East/Africa

Australia/

Korea/Thailand/Singapore

New Zealand / Taiwan /   Brazil

Support FDD LTE

B1/B3/B8

B1/B3/B5/

B1/B2/B3/B4/B5/B7

Frequency band

B12

B7/B8/B20

B8/B28

Country TDD LTE

B38/B39/B40/B41

B38/B40/B41

B40

Regional band TDSCDMA

B34/B39

/

/

Replaceable mode WCDMA

B1/B8

B1/B5/B8

B1/B2/B5/

Block model CDMA

BC0

/

/

GSM

900/1800MHz

B3/B8

B2/B3/B5/B8

Receiving sensitivity

LTE B1: -97dBm(20M)

LTE B3: -96dBm(20M)

LTE B5: -99dBm(10M)

LTE B7: -97dBm(20M)

LTE B8: -98dBm(10M)

LTE B20: -96dBm(20M)

UMTS B1: -110dBm

UMTS B5: -112dBm

UMTS B8: -111dBm

GSM 850: -111dBm

GSM 900: -110dBm

GSM 1800: -109dBm

GSM 1900: -109dBm

Sleep

The   vehicle goes to sleep after 5 minutes of flameout.

Network   dropped reconnection

GPRS   dropped calls can be automatically reconnected.

letter   of agreement

The   data information interacts with the platform using the TCP protocol.

parameter   settings

The   IP address, port number, and APN settings are directly made to the terminal   through the platform, and password protection is provided.

Positioning functions

Positioning   data

Includes   latitude and longitude, time, satellite number, speed, direction, ACC status,   battery voltage, OBD speed.

Base   station positioning function

Contains   network base station LAC and CellID information, carrier code.

Intelligent   track

The   terminal automatically judges the trajectory route, realizes the intelligent   reporting of the GPS point, and realizes the trajectory butterfly shape   effect.

Query   vehicle location

Query   the current location of the vehicle in real time.

Report   by time interval

The   terminal automatically judges the trajectory route, realizes the intelligent   reporting of the GPS point, and realizes the trajectory butterfly shape   effect.

Reminder   alarm function

Ignition   reminder

The   vehicle ignition reports the ignition alarm, including the alarm time and GPS   information.

Flameout   reminder

The   vehicle ignition reports the ignition alarm, including the alarm time and GPS   information.

Vehicle   low voltage alarm

The   vehicle voltage is lower than the settable voltage threshold, and the low   voltage alarm is reported, including the alarm time and GPS information.

Idle   speed alarm

The   vehicle voltage is lower than the settable voltage threshold, and the low   voltage alarm is reported, including the alarm time and GPS information.

Water   temperature alarm

For   vehicles that support OBD water temperature data, the water temperature   exceeds the settable temperature threshold.

Report   the water temperature alarm, including the alarm time, GPS information, and   the water temperature value at that time.

Speed   alarm

The   vehicle travel speed exceeds the settable speed threshold, and the overspeed   alarm is reported, including the alarm time and GPS information.

Collision   alarm

During   the running of the vehicle, the acceleration is greater than the settable   threshold, and the front and rear speeds are filtered.

Defined   as a severe collision scenario, reporting collision alarms, including   collision time, GPS information, collision acceleration

Trailer   alarm

The   vehicle is towed and reported to the trailer for warning, including trailer   time and GPS information.

Fatigue   driving reminder

The   vehicle travels for too long and automatically recognizes the fatigue driving   reminder.

Device   insertion alarm

The   terminal device is inserted and the alarm is reported.

Device   pull-out alarm (optional)

The   terminal device is pulled out, and the alarm is reported and pulled out (when   the backup power is available).

Long   positioning time

In   the case of vehicle ignition, the positioning time exceeds the settable time   threshold.

Reporting   the positioning time is too long, including alarm time and GPS information.

Driving   behavior

Driving   behavior

Including   driving cycle start terminal time, driving cycle total mileage, average   speed, maximum speed, overspeed duration,

Speed   number, idle time, rapid acceleration, rapid deceleration, sharp turn   information.

Driving   behavior event

During   the running of the vehicle, sudden acceleration, sudden deceleration, and   sharp turn events are generated, and the incident is reported separately.

OBD   data function

Vehicle   data flow

Report   the vehicle's critical data stream every 30S,

The   number of specific data items varies slightly depending on the vehicle data   support.

Reading   vehicle failure

The   terminal identifies the vehicle fault information, and reports the platform   when the vehicle fault state changes.

Clear   vehicle breakdown

Clear   the vehicle fault by issuing instructions from the platform.

Remote   management capabilities

Remote   upgrade

The   terminal software can be remotely upgraded through the GPRS network and   upgraded through the FTP server.

Remote   restart

The   device is restarted by sending a command in the data channel mode.

Remote   query

The   platform remotely queries terminal information, vehicle type, GPRS communication   parameters, heartbeat parameters, GPS/CAN return parameters, SIM card   information, GPS information, CAN data stream, and current faults through the   mobile network.
  Various alarm parameters, rapid acceleration and rapid deceleration sharp   turn parameters.

Remote   setting

The   platform remotely sets terminal information, vehicle type, GPRS communication   parameters, heartbeat parameters, GPS/CAN return parameters, clear vehicle   faults, control restart, factory reset, clear blind zone data, various alarm   parameters, and rapid acceleration and deceleration through the mobile   network. Sharp turn parameters.

Version   report

The   version information is reported every time ACC ON. The platform checks the   car version information by instruction.

SIM card information   reporting

Each time   ACC ON reports information such as the IMEI number of the SIM card.

The   platform checks information such as the IMEI number of the SIM card through   instructions.

Module   self-test

Terminal   status self-test: detect each function module (positioning module, bus   module, FLASH, 3D module)

Whether   it is working properly and its alarm occurrence (when it is not related to   wireless communication)

Backup   power

Backup   tracking and alarm (optional)

After the   terminal is pulled out, the internal battery is powered, and the alarm and   track position information is reported and pulled out. (optional)

Battery   voltage

Intake   manifold pressure

Accelerator   pedal position

Total   mileage category

Fault   light status

Engine   running time

total   mileage

Number   of fault codes

Fault   mileage

Total   fuel consumption

Coolant   temperature

Remaining   oil

Engine   speed

Vehicle   ambient temperature

Engine   load

Vehicle   speed

Fuel   pressure

Long-term   fuel correction (group 1)

Air   flow

Atmospheric   pressure

Ignition   advance angle

Intake   air temperature

Throttle   position

Total   vehicle running time

OBD   communication protocol

ISO-15765 500K   ST

ISO-15765 500K   EX

ISO-15765 250K   ST

ISO-15765 250K   EX

ISO-14230 FAST

ISO-14230 SLOW

ISO-9141-2

Network   communication protocol

TCP protocol

Serial number

Pin definition

Serial number

Pin definition

1

NC

9

NC

2

NC

10

NC

3

NC

11

NC

4

GND

12

NC

5

GND

13

NC

6

CAN High

14

CAN Low

7

K Line

15

L Line

8

NC

16

VCC

Indicator   category

①green–GPS；②blue–OBD；③Orange–GPRS

GPRS light

aways light   indicates that GPRS is online;

Flashing   indicates that the SIM card cannot be found;

A slow flash   indicates that it is online.

It is often   dormant or not powered.

GPS light

Steady on,   indicating that the positioning is successful;

Slow flashing   indicates positioning;

Flashing   indicates that the module is abnormal.

It is often   dormant or not powered.

OBD light

Blinking   indicates successful communication with the car;

Off means that   the vehicle is not communicating or is sleeping or not powered.

Note: The three-color   lights are switched in 5 second intervals according to the   "red-green-blue" sequence.
